Product Overview

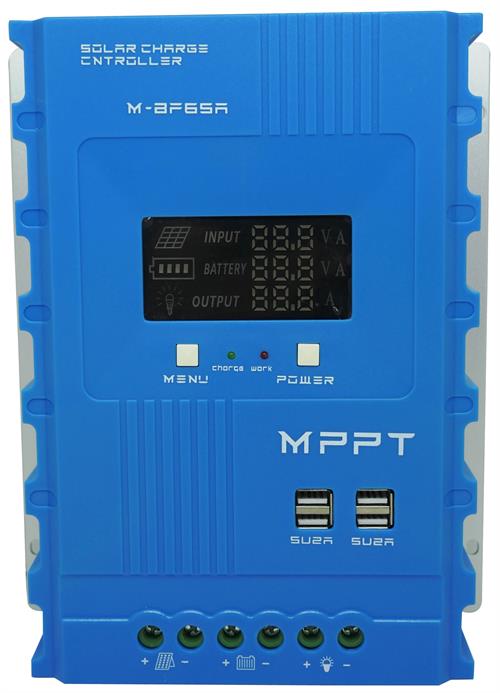

This Solarix Solar Charge Controller archives Maximum power of the solar panel: 60A (Automatically switches between 12V/24V and 48V) this controller-regulator is designed for charging batteries through a solar panel. When the battery voltage is not sufficient, the controller plays a protective role, preventing the voltage from falling below that required to charge the battery.
Features
•Built-in maximum power tracking algorithm can greatly improve the energy use efficiency of photovoltaic systems and increase the charging efficiency by 15% to 20% compared to the conventional PWM method. •The product boasts an optimal MPPT tracking efficiency of up to 99.9%. •Advanced digital power technologies increase the power conversion efficiency to 98%. •Charge programming options are available for different types of batteries, including gel batteries, lithium batteries, etc. •The controller has a limited current charging mode. When the power of the solar panel exceeds a certain level and the charging current is greater than the rated current, the controller will automatically reduce the charging power and bring the charging current to the rated level. •LED fault indicators and LCD screen that can display abnormality information help users to quickly identify system faults •Historical data storage function is available and the data can be stored for up to one year. •The controller is equipped with an LCD screen, with which users can not only check the device operation data and statuses, but also change the controller parameters. •The controller uses a built-in temperature protection mechanism. When the temperature exceeds the set value, the charging current will decrease linearly in proportion to the temperature, so as to limit the temperature rise of the controller, effectively protecting the controller from overheating damage. •Using temperature compensation function, the controller can automatically adjust the charging and discharging to extend the battery life. Specifications •Stock Code: SOLMPPT244860 •Description: Solarix Solar Charge Controller MPPT 12V / 24V / 48V 60A •Type: MPPT •System Voltage: 12V/24/48V Auto •Solar Panel Maximum Voltage Voc: 100V •Maximum Output Current: 60A •Maximum Charging Current: 62A •Solar Panel Power: 900W (12V), 1700W (24V), 3400W (48V) •Battery voltage: 12V-24V-48V •Battery type: lead acid (sealed, gel) and lithium (also can be customized for different types of batteries) •Waterproof level: IP30 •Standby power consumption: 8mA (12V), 12mA (24V) •Overload protection: <10S •Photo relay modes: Light control (automatic), light control + time, manual control, constant on mode •Communication: RS485 •Size (mm): 200x250x62 •Weight: 2 kg. •Operating temperature: -20 0 C ~ +40 0 C •Colour: Blue When the battery is charged, overcharge protection is triggered. Battery protection from: Overcharge protection (Automatic recovery) Short circuit protection (Automatic recovery) Voltage drop protection. (lower than required voltage) Over voltage protection 16V (12V system), 34V(24V system), 65V (48V system |
